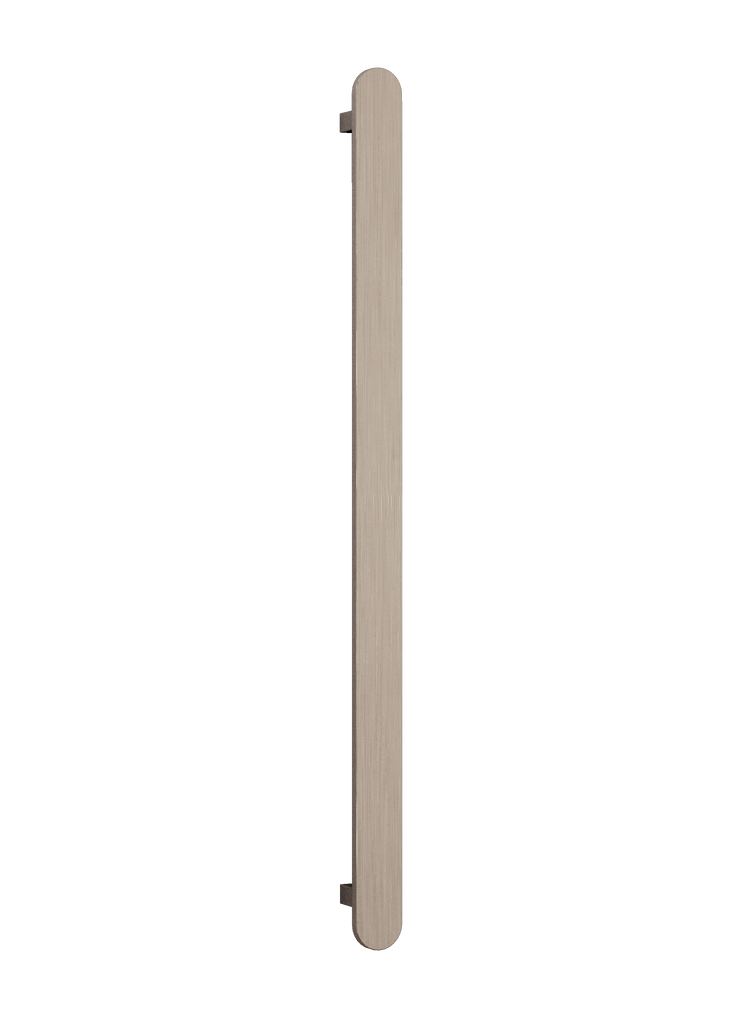

Thermogroup 12V Flat Pill Single Bar Vertical Heated Towel Rail - Brushed Nickel

Features:

• Multiflex wiring means that the connection point can be on the left and right-hand sides of the rail
• The connection point is typically at the bottom of the rail but can be flipped so that it is at the top
• The electric towel rail is designed to rapidly heat up and reach a temperature of around 45°C to 55°C degrees
• Constructed from quality 304-grade stainless steel material
• The rail can operate using an on / off switch
• Option to add a timer to choose the time when your towel rail heats up and reduces running cost if you forget to switch it off

• Output: 20Watts
• IP Rating: IP55
• Lead Length: 2m
• Voltage: 12Volts
• Wiring type:  Hardwired only
• Wiring Position: Top or bottom mounting position

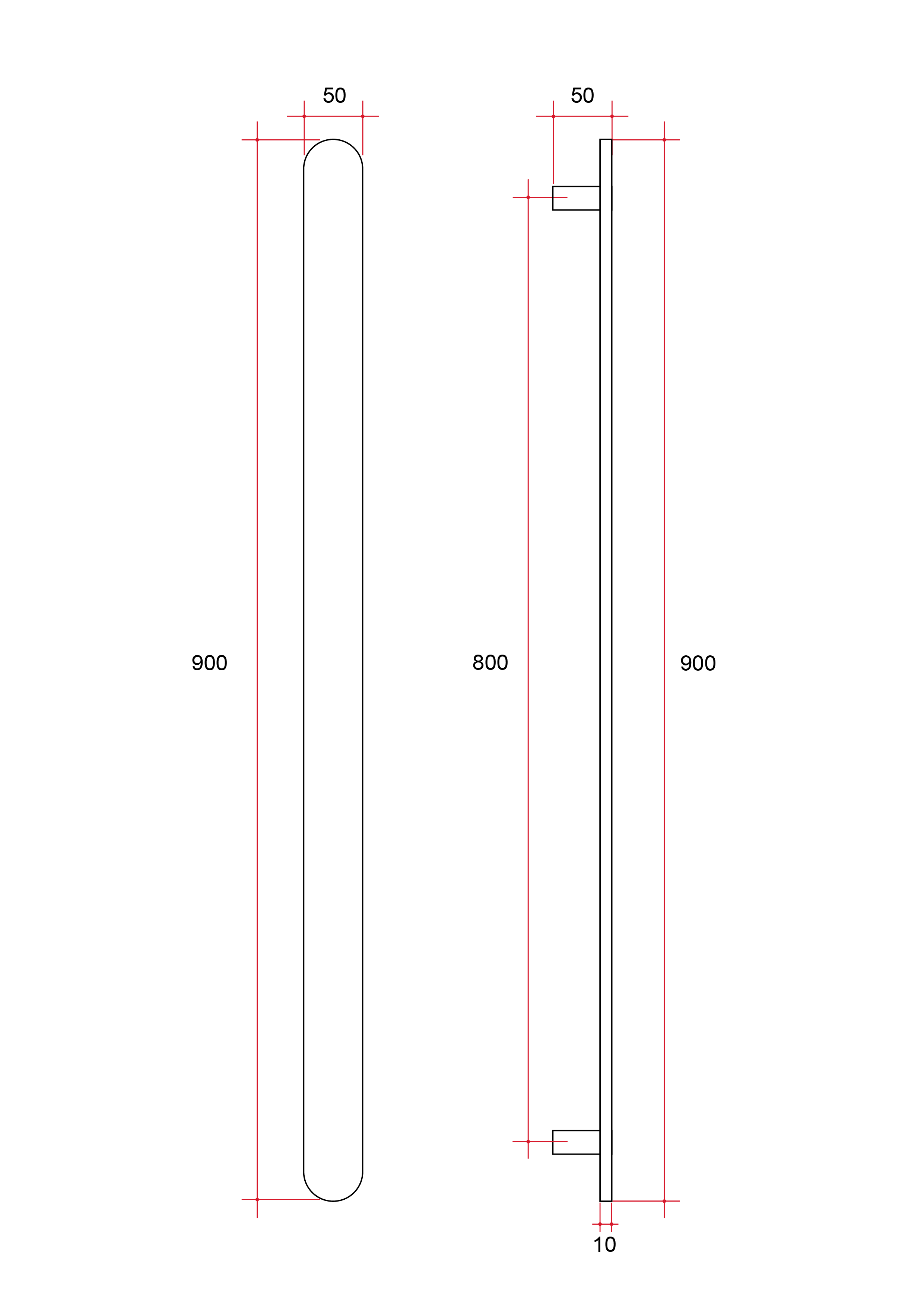

• Distance between Mounting Points (Top to Bottom): 780mm
PLEASE NOTE: Specifications are for information purposes only. Whilst every effort has been made to ensure the product specifications are accurate, due to continuing product development and improvement the specifications are subject to change. Specifications can be used to rough in and fit timber supports in the wall however we recommend no holes are drilled without having the product on site or verifying the details with the manufacturer. Thermogroup cannot be held liable or responsible for errors due to updated specifications.

Thermorail Heated Towel Rails Warranty Information

10 Year Warranty

Standard Thermorail Polished Stainless Steel Rails are covered by a 10 Year replacement warranty. This covers the rail body, finish, and the element. This warranty does not apply to the independent 12V transformer (12V models only). This applies to the following products.

• Polished Stainless Steel Single Bar Rails
• Polished Stainless Steel Vertical Rails
• Polished Stainless Steel 12V Ladder Rails
• Polished Stainless Steel Ladder Rails
• Themorad Towel Dryer

7 Year Warranty

Standard Plated/Coloured and Budget Ladder Rails are covered by a 7 Year replacement warranty. This covers the plated finish, the rail body, and the element. This warranty does not apply to the independent 12V transformer (12V models only). This applies to the following products.

• Brushed, Black, White, Brushed Gold, Gun Metal, Brushed Brass and Brushed Nickel Single and Vertical Bar Rails
• Black, Brushed, White, Brushed Gold, Gun Metal, Brushed Brass, Brushed Nickel and Rose Gold Ladder Rails
• 240V Budget Ladder Rails
• Free Standing RailsFloor-to-Ceiling Rail

5 Year Warranty

All custom-plated rails have a 5 Year replacement warranty. This covers the plated finish, the rail body, and the element. This applies to the following products.

• Vertical/single Bar Plated Range
• Ladder Plated Range

Transformer Warranty

All Low Voltage (12Volt) rails are supplied with a 12V driver/transformer. This is covered by a 12 Month warranty only.

Timer Warranty

Timer warranty periods differ to the towel rail warranties. Installing a towel rail with or without a timer does not impact the warranty period of the towel rail.

• TRTS, TRTSL, TRTSB are covered by a two-year warranty.
• EB11 is covered by a three-year warranty.
• ET12C, ET12CB & 5289 are covered by a one-year warranty

What's in the Box:

• Thermorail Single Vertical Bar Rail
• 12Volt Transformer
• Screw Kit including:

   -1 x Non-Wired Leg (Supplied attached to the rail)
  - 1 x Wired Leg (Supplied attached to the rail)
   -2 x Mounting Bracket (Supplied in Leg)
   -4 x Wall Plugs
  -  4x Countersunk Screws
  - 4 x Small Machine Screw
  - Grub Screws
  - 1 x Allen Key
